Bulletproof EBS on OCI (Episode 1/4)

Ransomware attacks are no longer a question of "if," but "when." In the world of enterprise ERPs, an attack on your Oracle E-Business Suite (EBS) isn't just an IT inconvenience – it’s a business-critical stoppage.

At Broadpin, we recently undertook a project to secure a customer’s EBS landscape running on Oracle Cloud Infrastructure (OCI) Base Database Service. Our goal was simple but uncompromising: Total Immutability. We needed backups that couldn't be deleted or altered, even if a hacker gained administrative access to the tenancy.

In this four-part series, we will walk you through exactly how we achieved this. Today, in Episode 1, we cover the strategy and the setup. In a second Episode to be published soon, we'll cover step-by-step how to restore the E-Business Suite environment based on this backup. Then in a third Episode we'll look into how you can achieve a similar setup when running the E-Business Suite database on compute.

In a final Episode we'll consider, how an On-Prem customer can leverage the (brand new) "Zero Data Loss Cloud Protect" to implement a similar setup when (still) running E-Business Suite On Premises.

Keep in mind that what is described here (Backup&Restore) should be considerd as the bare minimum you want to setup. It will give you an Recovery Point Objective (RPO; the amount of data you might lose in a disaster) between 0 (with the Zero Data Loss option of Autonomous Recovery Service) to maybe 30 minutes (with archive log backups scheduled at this rate). And depending on the size of your environment and the level of automation a Recovery Time Objective (RTO; time until you're up and running again) of a couple of hours.

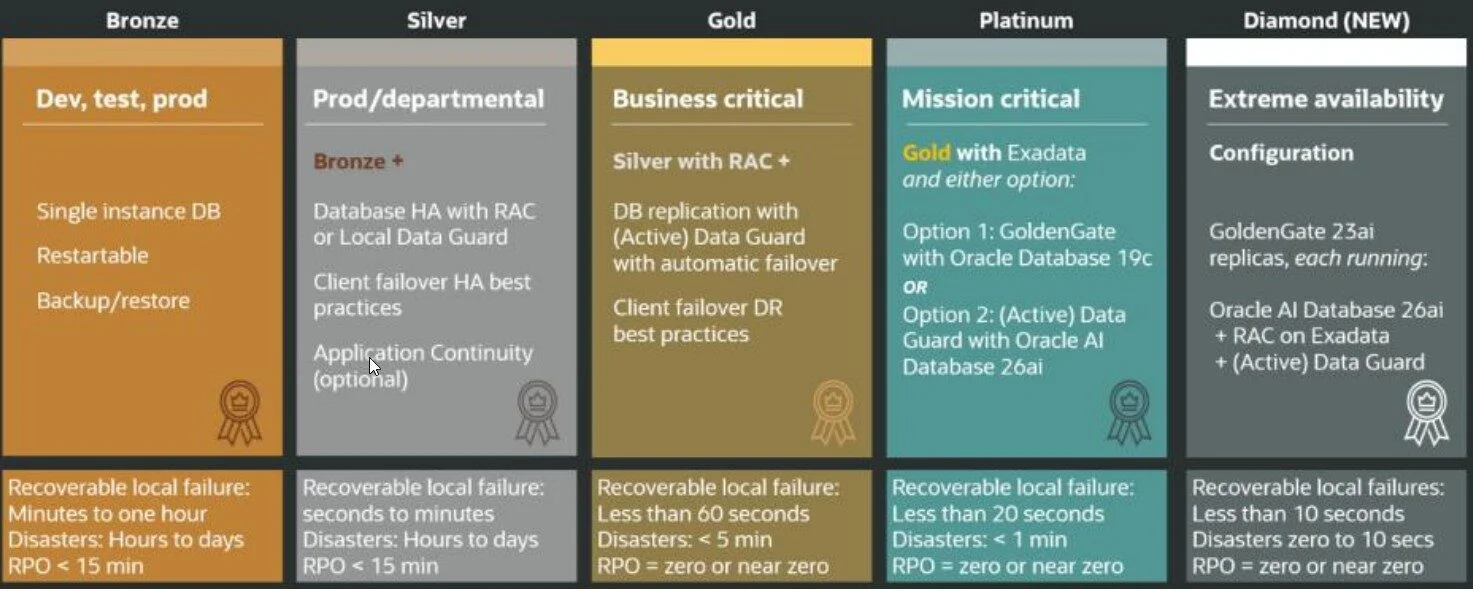

Oracle MAA Levels; see https://www.oracle.com/a/tech/docs/maa-data-sheet.pdf

Obviously if this is not enough (for various types of local failures and disasters) you should look into even more advanced options such as Data Guard or GoldenGate - eventually even cross region - to protect you from even more scenarios. For the Ransomware scenario having the RTO&RPO as described above will typically be enough.

Securing EBS requires a bifurcated approach because you are protecting two distinct layers:

1. The Database Tier: (Base Database Service)

2. The Application Tier: (Compute Instances/Filesystems)

While OCI provides excellent native tools, we discovered that achieving true undeletable immutability requires a specific architectural choice, particularly for the application tier.

Part 1: The Database Tier (The Easy Win)

For the database layer, OCI offers a powerful native solution: the Oracle Database Autonomous Recovery Service: https://docs.oracle.com/en-us/iaas/recovery-service/doc/overview-recovery-service.html

We migrated the backup destination from standard Object Storage to Autonomous Recovery Service. This service allows for a "Recovery Window" where backups are protected by a policy lock.

• The Broadpin Setup: We configured a retention window of 35 days.

• The "Lock": By enabling the Policy Locking feature, we ensure that the retention period cannot be reduced, and backups cannot be deleted before the window expires.

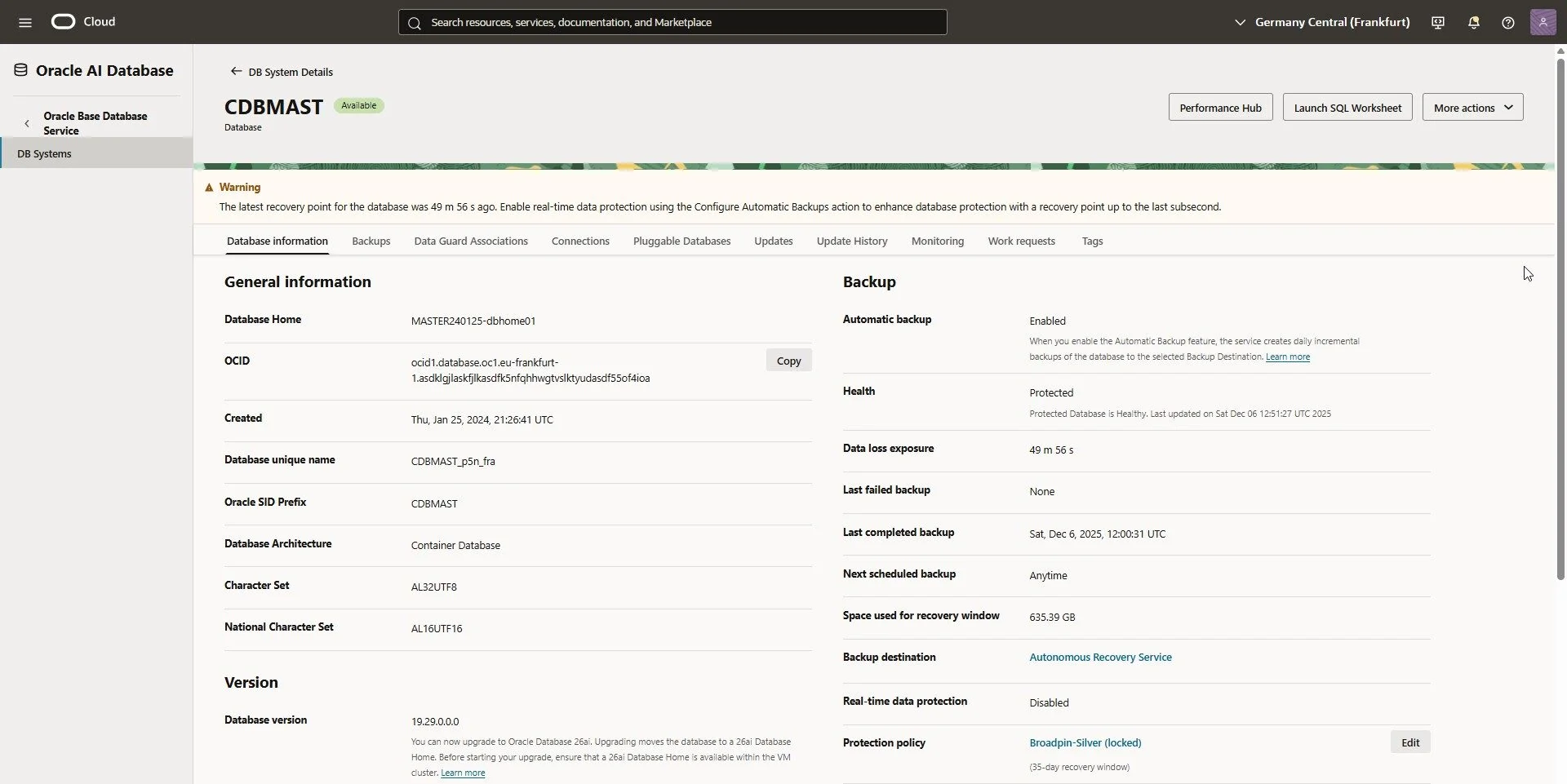

Base Database protected with a locked retention policy

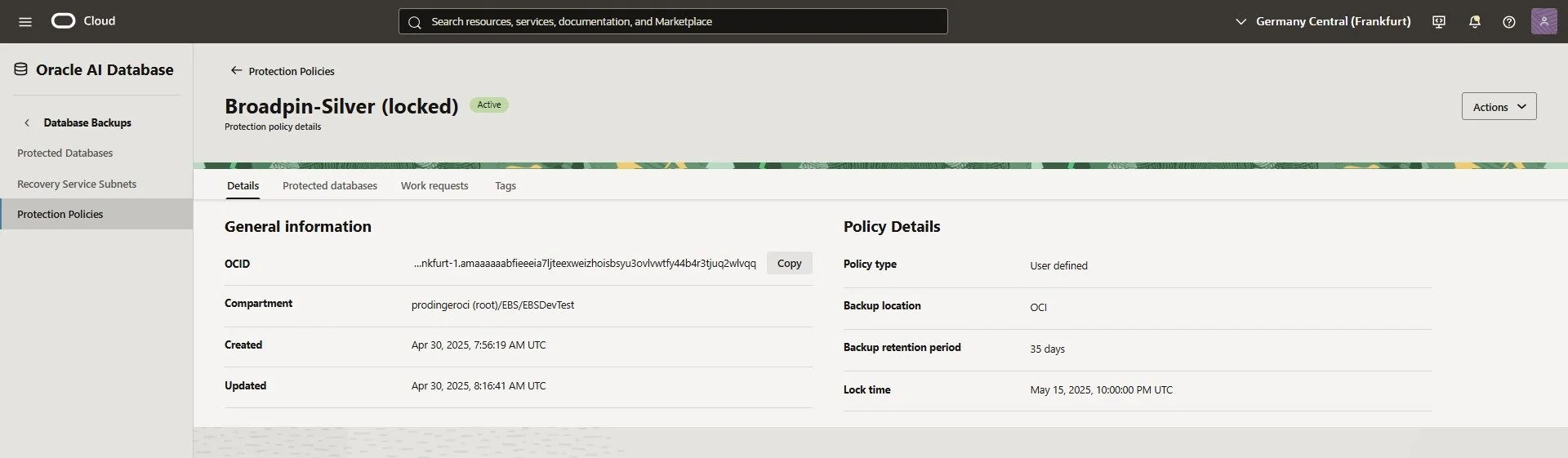

Details on the Policy

Note: For deep divers, check the official documentation on Policy Locking.

Part 2: The Application Tier (The Workaround)

Here is where things get interesting. Typically, you would use OCI Block Volume Backups for the App Tier boot and data volumes (/u01).

However, as we identified during our analysis (referencing Doc ID 2990758.1), while OCI Block Volume backups are technically immutable (you can't change the data inside them), they currently do not support a Retention Lock. This means a compromised administrator account could strictly delete them.

The Solution: To bypass this, we implemented a file-level backup strategy leveraging OCI Object Storage Buckets with Retention Rules.

Step 1: Configure Immutable Object Storage

We created a specific bucket named Master_Immutable_Backup. To manage costs and security, we applied two specific rules:

1. Lifecycle Policy: Automatically deletes objects after 36 days (to keep storage costs flat).

2. Retention Rule: A Time-Bound Retention Rule that creates a WORM (Write Once, Read Many) lock for 35 days.

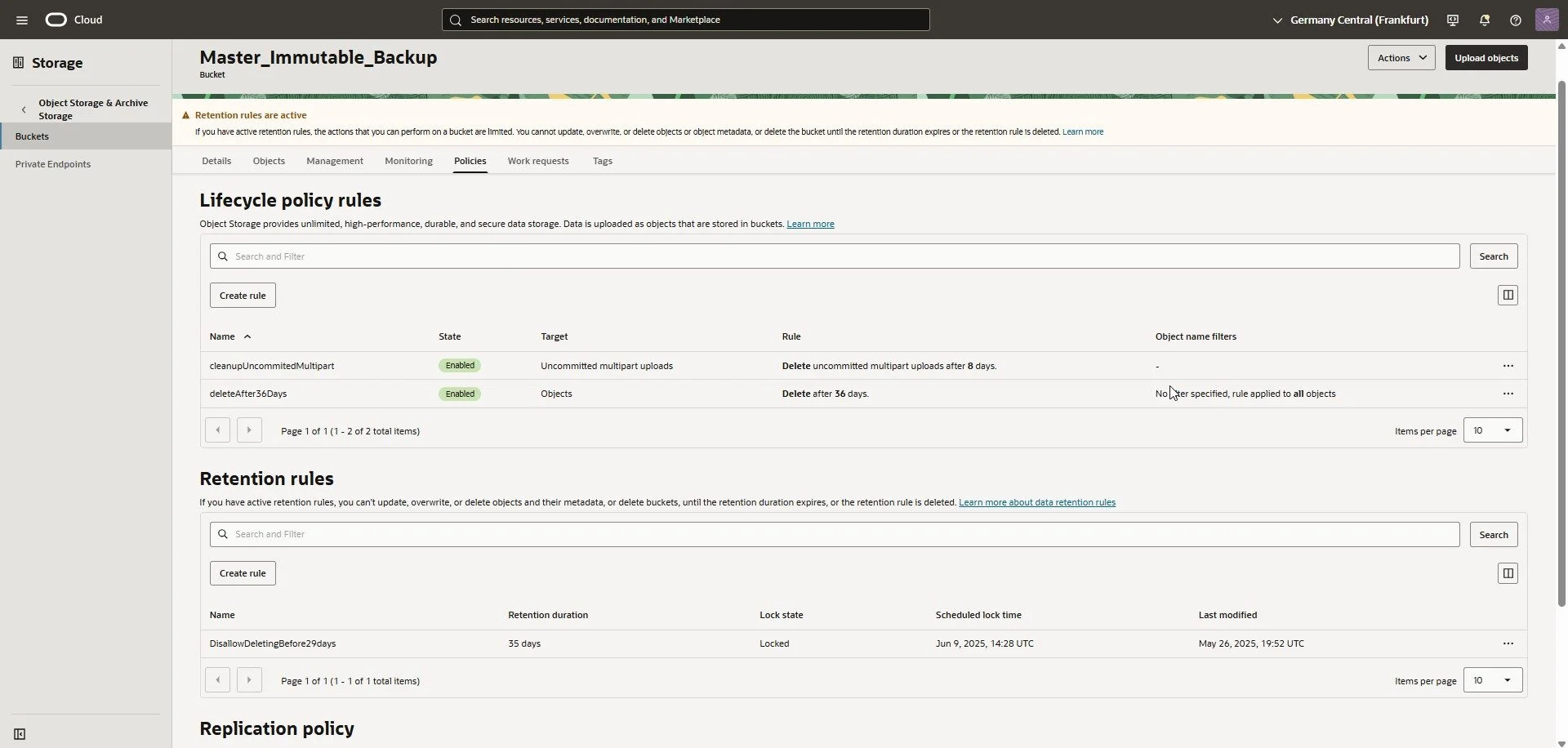

Bucked with Lifecycle Policy and Retention Rule

Crucial: Once this Retention Rule is locked, no one—not even the tenancy admin or Oracle Support—can delete the files before the timer expires.

Note: You could even add a Replication policy to mirror the backup to a second OCI region.

Step 2: IAM & Access

To allow the EBS Application server to push backups without exposing permanent user credentials, we used Instance Principals.

1. Create a Dynamic Group (MAST): We defined a dynamic group that includes the specific EBS application instance(s) to be backed up.

2. Create the Policy: We granted the dynamic group permission to manage objects in our specific bucket:

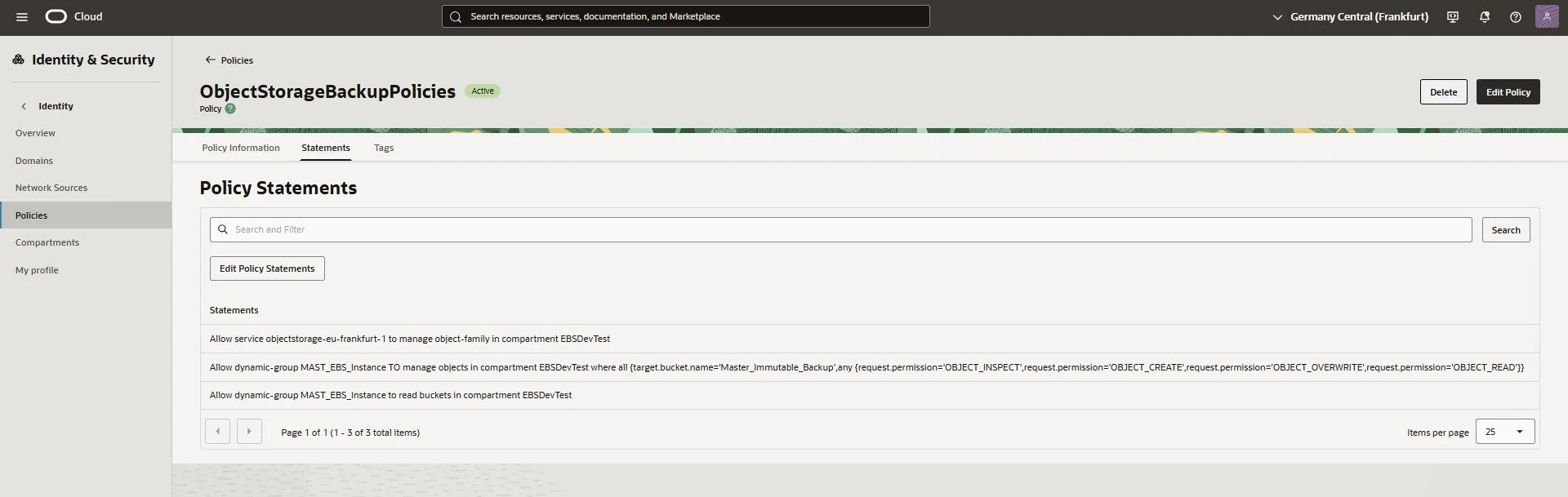

Policy to allow the dynamic-group MAST_EBS_Instance to write backups to the bucket

Step 3: Scripting the Backup

On the EBS Application Tier, we utilized the OCI CLI to stream the backup directly to the bucket.

Install OCI CLI (on the App Tier):

sudo yum install python36-oci-cli

The Backup Script (backup_oci.sh): We created a script that tars the /u01 directory (excluding logs to save space) and pipes it directly to Object Storage. This prevents the need for massive local temporary files. A simplified version of the script (you will want to add more logging and issue handling, but I omitted this for brevity):

The Backup Script (backup_oci.sh): We created a script that tars the /u01 directory (excluding logs to save space) and pipes it directly to Object Storage. This prevents the need for massive local temporary files. A simplified version of the script (you will want to add more logging and issue handling, but I omitted this for brevity):

Step 4: Automation

Finally, we added this to the oracle user's crontab to execute every Sunday night.

5 1 * * 0 /u01/install/APPS/scripts/backup_oci.sh

Verification: The "Fire Drill"

A backup strategy is only a hope until you test the restore. We verified the integrity of our immutable pipeline with the following restore command:

oci os object get --bucket-name Master_Immutable_Backup --auth instance_principal --name bkp_fullMAST_master240125app01_20250526_182354.tgz --file - | tar -zxv

At Broadpin, we believe that security should be built-in, not bolted on. By combining the Autonomous Recovery Service for the database and locked Object Storage buckets for the application tier, we established a ransomware-resistant perimeter around the critical ERP data.

If you have not yet thought about this and implemented something similar for your E-Business Suite environments: It's about time; I've seen too many (ransomware) attacks in recent months across small and big companies that "sitting this out" is not a viable option.

Stay tuned for Episode 2, where we will discuss the Disaster Recovery scenarios and how to automate the restoration of this environment!
