SOA Suite on Docker - 14c edition

This blog post was written by Johannes Michler (Chief Technology Officer (CTO) @ Broadpin & Oracle Ace Director). It was originally published on 17 January 2025 by PROMATIS, which is now Broadpin.

As an early christmas gift Oracle released the 14c edition of Oracle SOA Suite in late December 2024. I had a quick look by running through my "SOA Suite on Docker" recipes from my previous blog posts again.

So here is a very code-centric blog post how to get a SOA Suite 14c up and running on Windows with the Windows Subsystem for Linux v2 within 10 Minutes:

Related article

Running Oracle SOA Suite in Docker Blog Post Series

The commands

Most of the commands are explained in my previous blog posts, so here is "just the condensed" version:

Preparation for windows:

wsl -install
#reboot windows and open ubuntu Shell:
curl -fsSL https://get.docker.com -o get-docker.sh
sudo sh get-docker.sh
sudo usermod -aG docker $USER

Then login to the Oracle Container registry and pull the latest images:

docker login container-registry.oracle.com
docker pull container-registry.oracle.com/database/free:latest
docker pull container-registry.oracle.com/middleware/soasuite:14.1.2.0-21-ol9-241205

Setup a network and create a (non certified) free edition database instance:

docker volume create mysoadb1
docker network create soanet1
docker run --name myxe1 --network soanet1 -e ORACLE_PWD=Promatis1 -p 1521:1521 -v mydbvol:/opt/oracle/oradata --rm container-registry.oracle.com/database/free:latest

For creating a metadata repository and creating a domain we need two environment files (one for the admin, and one for the managed server):

jmichler@PROM-231:~/soa-tests$ cat adminserver.env
CONNECTION_STRING=myxe1:1521/freepdb1
RCUPREFIX=SOA2
DB_PASSWORD=Promatis1
DB_SCHEMA_PASSWORD=Promatis1
ADMIN_PASSWORD=Promatis1
DOMAIN_NAME=soainfra
DOMAIN_TYPE=soa
ADMIN_HOST=soaadmin2
ADMIN_PORT=7001
PERSISTENCE_STORE=jdbc

jmichler@PROM-231:~/soa-tests$ cat soa_server1.env
MANAGED_SERVER=soa_server1
DOMAIN_NAME=soainfra
ADMIN_HOST=soaadmin2
ADMIN_PORT=7001
ADMIN_PASSWORD=Promatis1
MANAGED_SERVER_CONTAINER=true
MANAGEDSERVER_PORT=7003

With that in place we can start the SOA Suite servers:

docker volume create soa1_userproject

docker run -d --rm --name soaadmin2 --network soanet1 -v soa1_userprojects:/u01/oracle/user_projects -p 7001:7001 --env-file ./adminserver.env container-registry.oracle.com/middleware/soasuite:14.1.2.0-21-ol9-241205
#wait until it is up and running. Then:
docker run -d --rm --name soams1 --network soanet1 -v soa1_userprojects:/u01/oracle/user_projects -p 7003:7003 --env-file ./soa_server1.env container-registry.oracle.com/middleware/soasuite:14.1.2.0-21-ol9-241205 "/u01/oracle/container-scripts/startMS.sh"

Within just minutes you can then connect to the latest and greatest SOA Suite version:

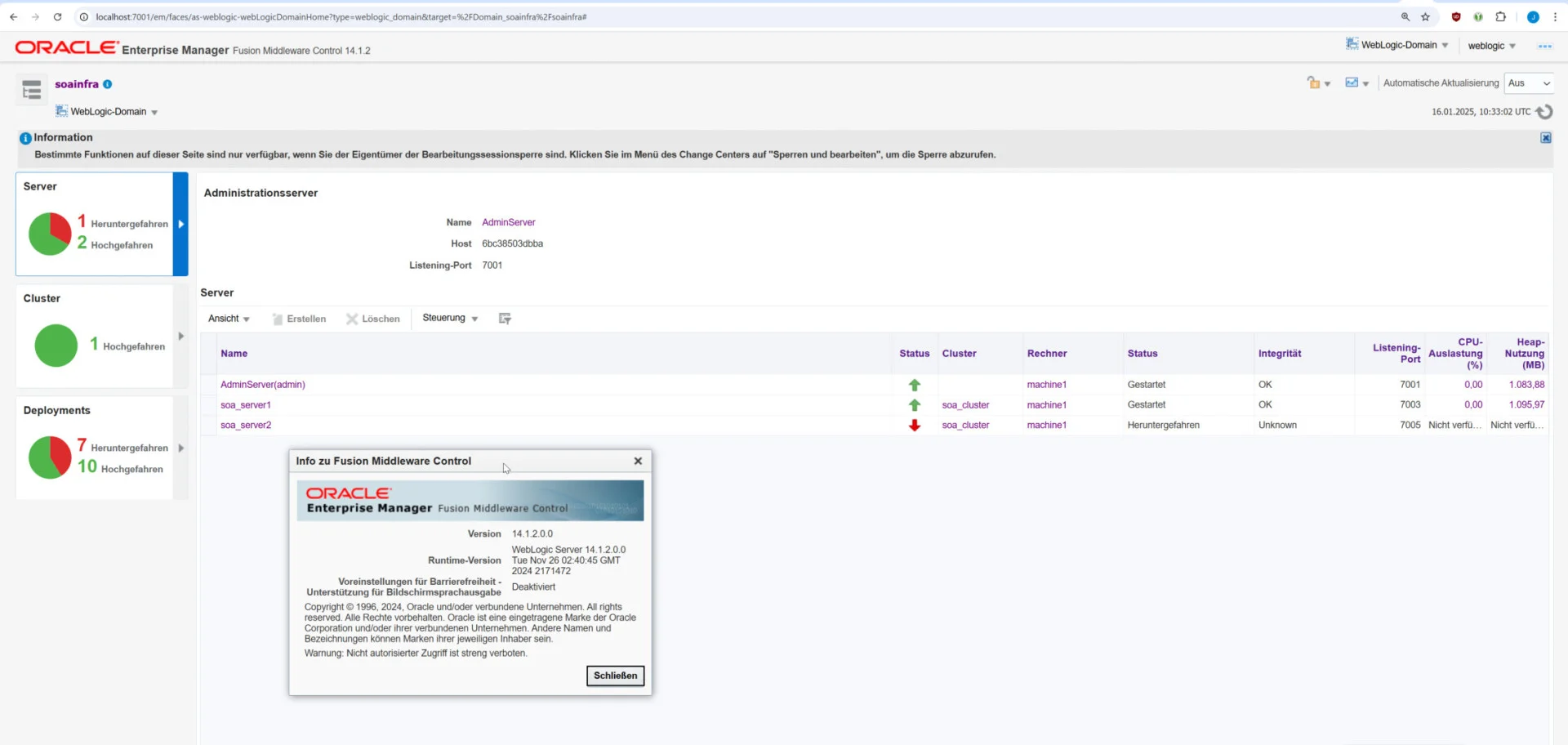

SOA Suite 14c running in docker

Summary

The latest SOA Suite release provides some new features and most important premier support until December 2029:

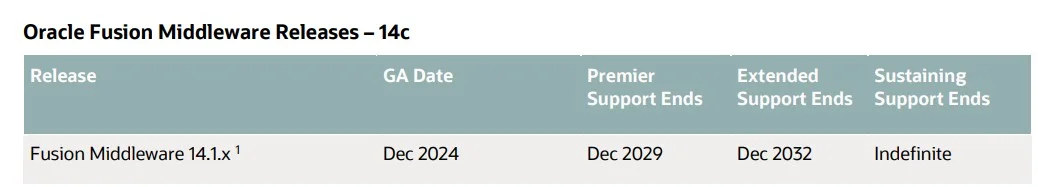

14c Support as of January 2024; see

Keep in mind that the clock is ticking now for any 12.2.14 instance of SOA Suite you may still be using; you'll probably want to migrate to 14c (which is a limited project) at the latest somewhen next year:

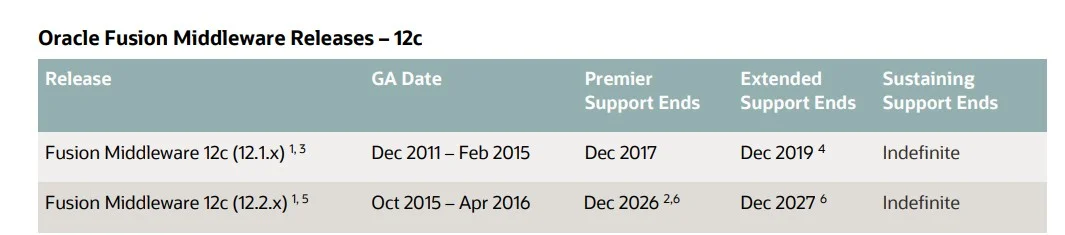

12.2.14 support timeline
